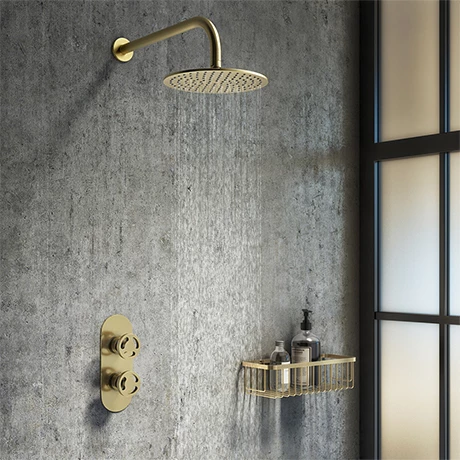

Arezzo Brushed Brass Industrial Style Shower System with Concealed Valve + Head

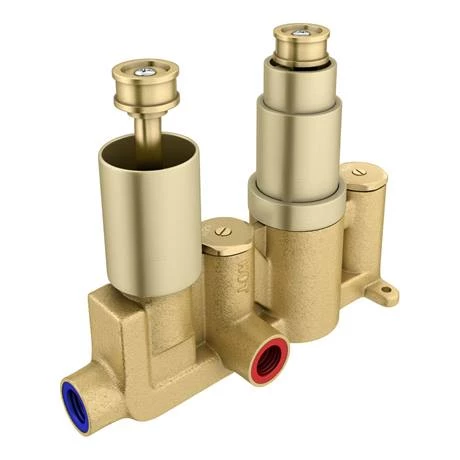

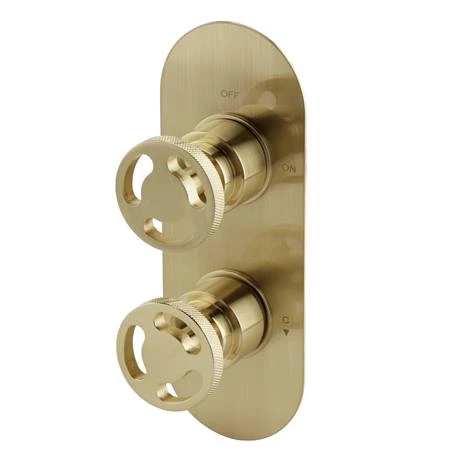

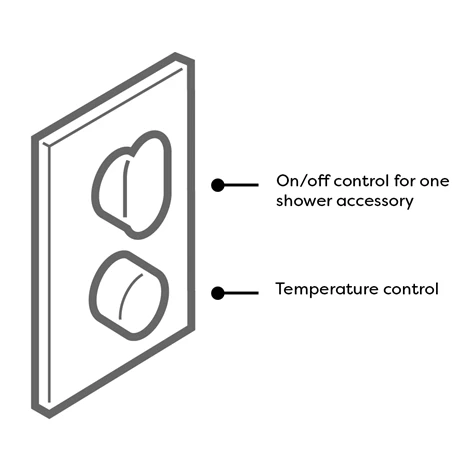

This Arezzo brushed brass industrial-style round concealed thermostatic valve features a stripped-down aesthetic with round knurled textured tap heads, perfect for creating an eye catching industrial look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary curved face plate and has been constructed from solid brass. Supplied with matching wall mounted brushed brass round fixed shower head with swivel joint and arm.

Shower Valve Details

• Height: 215mm
• Width: 80mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Material: Solid Brass Internals
• Valve Handles: Round
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Curved Faceplate
• Industrial Style Detailing

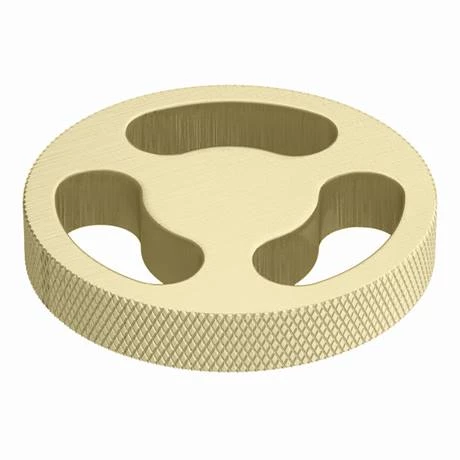

• Circular handles with a tactile knurled grips
• For use with 1 Outlet
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.5 L/min
• 1 bar – 11.7 L/min
• 2 bar – 16.4 L/min
• 3 bar – 19.8 L/min
• 4 bar – 22.2 L/min
• 5 bar – 24.9 L/min

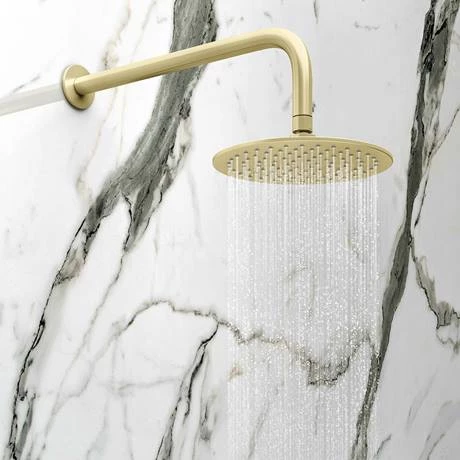

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain

Shower valve Guarantee 3 Year, (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Twin Round Concealed Shower Valve
(1) 200 x 200mm Ultra Thin Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
