Arezzo Brushed Brass Square Shower System (Twin Valve with Diverter, Wall Mounted Head + Handset)

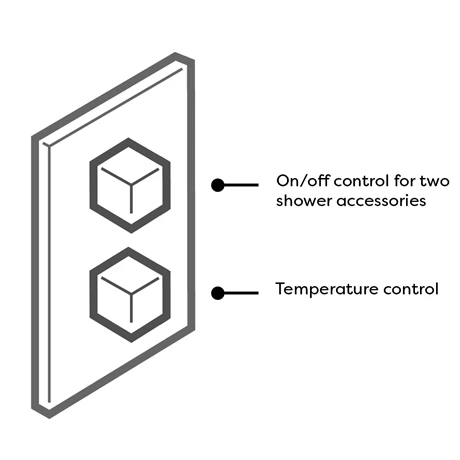

The Arezzo square concealed thermostatic shower valve features a striking minimalist design with a luxury brushed brass finish and offers thermostatic showering via two easy-to-operate controls for temperature and flow. Valve has built-in diverter to switch between two different shower accessories (fixed head and handset).

Supplied with a sleek 300 x 300mm square fixed shower head with swivel joint and a square outlet elbow with parking bracket, flex and a matching rectangular handset. The solid brass valve body comes with a easy to clean contemporary square backplate.

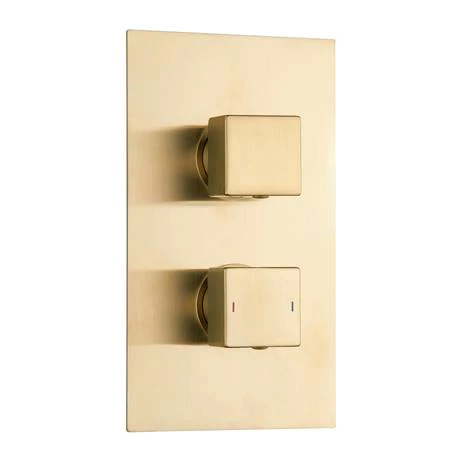

Shower Valves Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Concealed
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 2 Outlets
• Built-In Diverter
• Can be fitted vertically or horizontally
• Shower head and handset sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

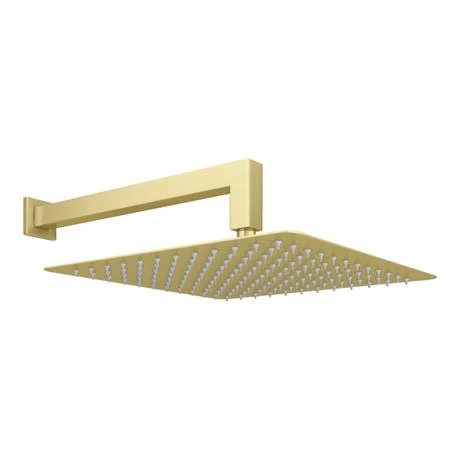

Shower Head with Arm Details

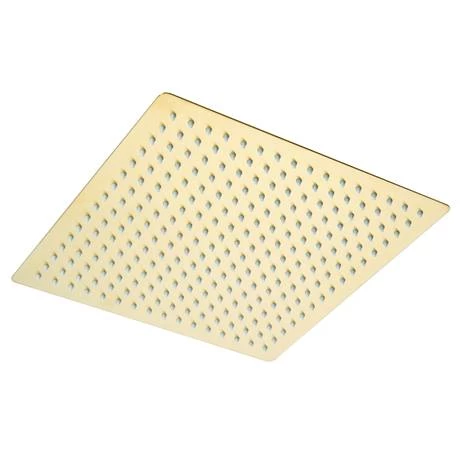

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

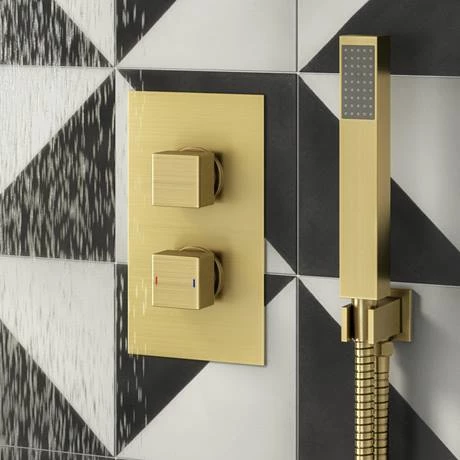

Shower Handset Details

• Depth: 64mm
• Height: 228mm
• Width: 40mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Shape: Square
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Handset holder
• Connections: 15 mm (1/2″ BSP)

Installation requires rear access behind the wall.

Comprises

(1) Square Modern Twin Concealed Shower Valve with Diverter
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm
(1) Ultra Thin Square Shower Head (300 x 300mm)
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
