Astoria Traditional Concealed Shower Valve inc. 8″ Head with Arm

The traditional Astoria concealed shower package, consists of a thermostatic valve with rectangular black plate and a chrome shower rose with wall mounted arm. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. Create a opulent feel in your bathroom with this classically styled package manufactured from brass with a polished chrome plated finish.

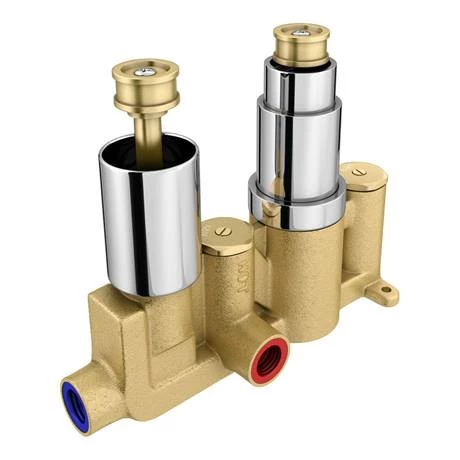

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Polished Chrome
• Brass Internals
• Water Pressure: 0.5 bar to 5 bar

• Wall mounted
• Rectangular back plate
• Thermostatically controlled
• Classic cross head handles
• Separate controls for temperature and flow.
• Operates a single shower accessory – 1 Outlet
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head & Arm Details

• Diameter: 200mm
• Height: 100mm
• Shower arm length: 345mm
• Belmont Traditional 8″ Apron Rose Shower Head with Arm
• Includes Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Installation of the arm requires rear access behind the wall.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal
components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
