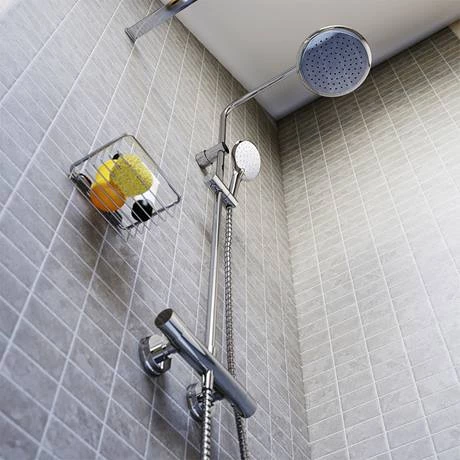

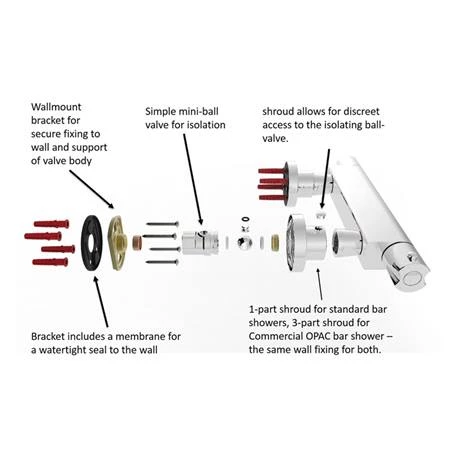

The Bristan Claret Thermostatic Exposed Bar Shower features separate flow and temperature controls and a push button multi-function rub-clean anti-limescale handset. Supplied with a wall mount fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valves.
Product Details
- Finish/Colour: Chrome
- Main Construction Material: Brass
- No of Controls: 2
- Shower Type: Exposed Bar

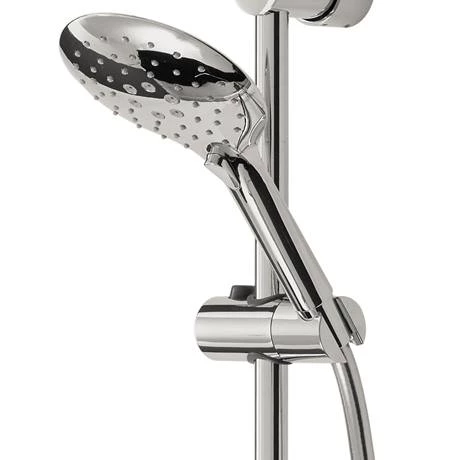

- Shower Head Type: Handset and Fixed Head

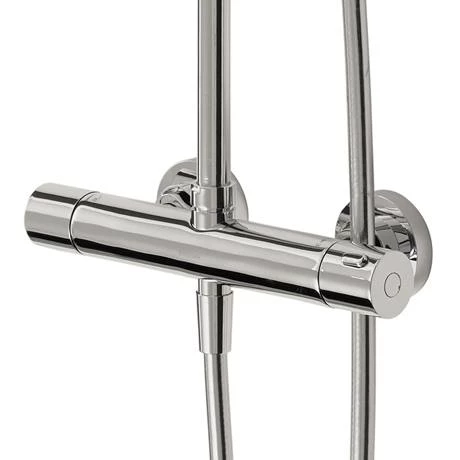

- Valve/Cartridge Type: Thermostatic
- Maximum Hot Water Supply Temperature: 80°C
- Maximum Static Pressure: (bar) 10
- Plumbing System Suitability: All – Ideally Balanced
- Minimum Dynamic Pressure: 0.5 Bar
- Maximum Dynamic Pressure: 5.0 bar
- Connection Inlet: 15mm Compression
- Connection Outlet: G1/2″
- Isolation Valve Included: Yes
- Check Valve Included: Yes
- Integral two outlet diverter
- Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C
- Dual control – flow and temperature are controlled separately
- Automatic shut-off in the event of hot or cold water supply failure
- 15mm inlet connections
- Supplied with a wall mount 12 fixing kit for easier first fit
5 Year Guarantee
