Hansgrohe Over Bath Concealed Tap & Shower Package

This hansgrohe over bath concealed tap and shower package offers an economical way of adding designer elegance to your bathroom at an attractive price. This complete bundle comprises of a mono basin tap with waste, concealed thermostatic shower valve, shower slider rail kit and bath filler waste with overflow.

Basin Tap Details

• Finish: Chrome
• Height: 163mm
• Projection: 108mm
• ComfortZone 100
• Normal spray
• Flow rate at 3 bar: 5 l/min
• Ceramic cartridge
• Pop-up waste set G 1 1/4
• Material waste set: Metal
• AirPower – Air enriched water feels silky smooth
• EcoSmart – Keeps flow to a minimum to save water and energy
• Recommended Operating Pressure: 1.0 Bar – 5.0 Bar
• WRAS approved

iBox Details

• Adjustable clamping collar
• G¾ connections; G1 connection possible with provided reductions
• Patented sound proofing
• Support points for spirit level
• Includes flush block
• Marking aid for plating
• Connection thread Rp ¾
• Operating Pressure: min. 1 bar/max. 10 bar
• Suitable for all shower, bath and thermostat finish sets for concealed installation
• Rotationally-symmetrical installation
• Installation Depth: from 80 to 108mm
• WRAS 1304305
• WRAS 1503309
• Kiwa UK 1405706

Finish Set Details

• Finish: Chrome
• 2 Outlets
• Flow Rate at 3 Bar: 26 l/min
• Thermostat Cartridge
• Shut-off / Diverter valve
• Safety Lock at 40°C
• Temperature limitation adjustable
• Comprises of handles, sleeve, mixing unit, escutcheon, shut-off / diverter valve
• Recommended Operating Pressure: 1.0 Bar – 5.0 Bar

Slider Rail Kit Details

• Spray Pattern: Rain, IntenseRain, TurboRain

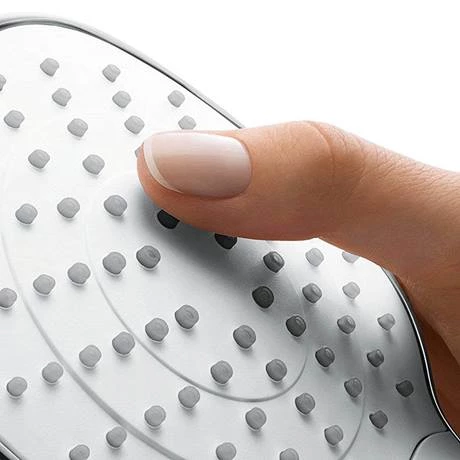

• Shower Head Size: 110mm
• Finish: White / Chrome
• Pivot connectors prevent hose from tangling

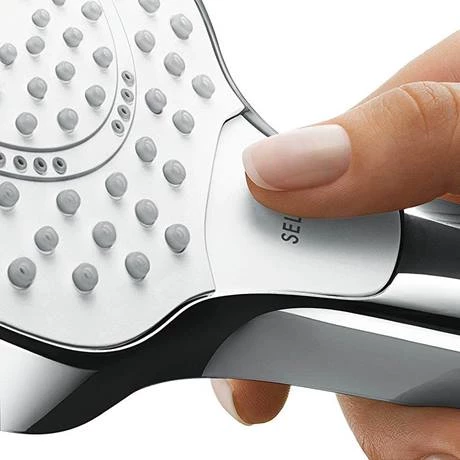

• Select button to comfortably switch between spray modes
• Chrome-plated plastic wall supports
• Slide inclination angle can be adjusted by 45°
• Fully chrome-plated shower slide
• Maximum Flow Rate: 15 l/min at 3 bar
• 22mm width of shower bar
• Includes 90cm slider rail and 1.6m hose
• Recommended Operating Pressure: 1.0 Bar – 6.0 Bar
• QuickClean – Remove limescale deposits easily by rubbing them off

Bath Waste Details

• Suitable for special tubs, baths with slanted rim
• Bowden cable length 780 mm
• Supply hose water connection left 3/4″
• Consists of basic set and bath tub trap
• Overflow cover and waste plug
• WRAS approved

5 Year Guarantee

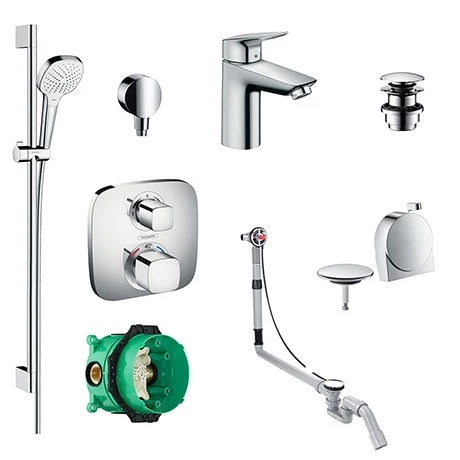

Comprises

(1) Logis Single Lever Basin Mixer 100 with Metal Pop-up Waste – 71171000
(1) iBox Universal Basic Set – 01800180
(1) Ecostat E Thermostat 2 Function Concealed Finish Set – 15708000
(1) Croma Select E 110 Vario 3 Spray Shower Slider Rail Kit 90cm – 26592400
(1) Fixfit S Wall Outlet DN15 Chrome – 27543000
(1) Exafill S Basic Set for Bath Filler with Waste & Overflow Set for Large Bathtubs – 58116180
(1) Exafill S Finish Set Bath Filler Waste & Overflow Set – Chrome – 58117000
(1) McAlpine T25 Adapter – 7002501
