Milan Square Triple Valve with Diverter, Fixed Water Blade Shower Head + 6 Body Jets

The Milan modern square 3 outlet shower package brings substantial elegance to the modern bathroom. The triple valve enables you to select the fixed rectangular shower head which has two functions ‘Rain effect or waterfall effect’ combined in the one head making it quite unique and 6 body jets which are perfect for creating a shower that massages you. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

This incredible package is perfect for the modern bathroom, looking to add a touch of style and sophistication. The stunning design can complement any contemporary style bathroom and each item has been built to the highest standards of today’s manufacturing capabilities.

Shower Valve Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm

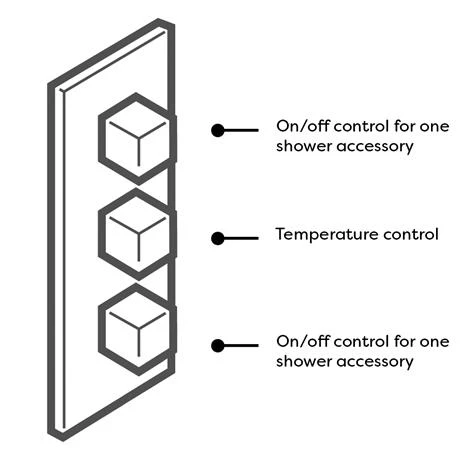

• Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to a third option.
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.8 L/M
• 1 bar – 11.1 L/M
• 2 bar – 16 L/M
• 3 bar – 19.5 L/M
• 4 bar – 22.8 L/M
• 5 bar – 25.5 L/M

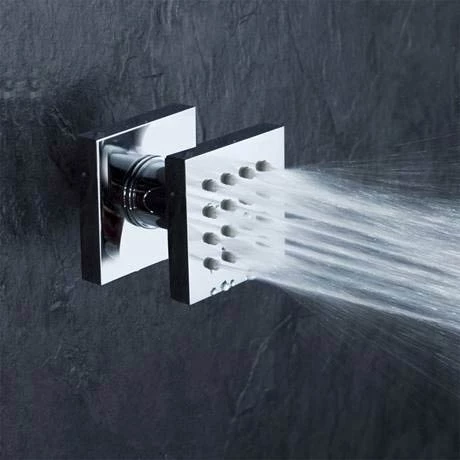

Body Jet Details

• Overall Size: (D)60 x (W)50 x (H)50mm (Approx.)
• Shroud: (H)50 x (W)50mm Brass
• 1/2 inch BSP thread: 25mm long
• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Supplied with swivel joint
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Requirement: Suitable for all plumbing systems

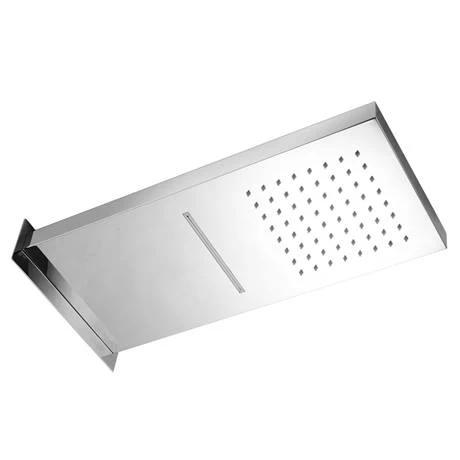

Rectangular Shower Head with Rain/Waterfall Functions Details

• Projection: 500mm
• Width: 220/240mm
• Height: 30/80mm
• Type: Overhead Fixed Shower head with integrated arm rectangular

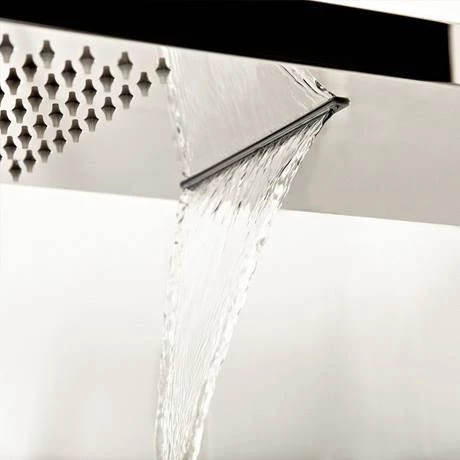

• Rain and waterfall functions
• Finishes: Chrome Effect
• Material: Stainless Steel
• Wall Mounted Rub clean nozzles makes this item easy to clean and maintain
• Inlet Connections: 1/2″ BSP
• Recommended water pressure: 0.5 – 3 bar
• Max Water pressure: 8 bar
• Recommended hot water temp: 37 – 57 °C
• Max Hot water temp: 73 °C

*Certain parts are chrome plated plastic, not metal.

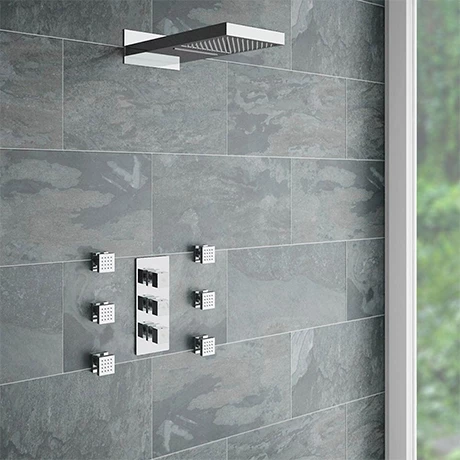

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) Rectangular Shower Head with Water Blade
(6) Slim Square Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
