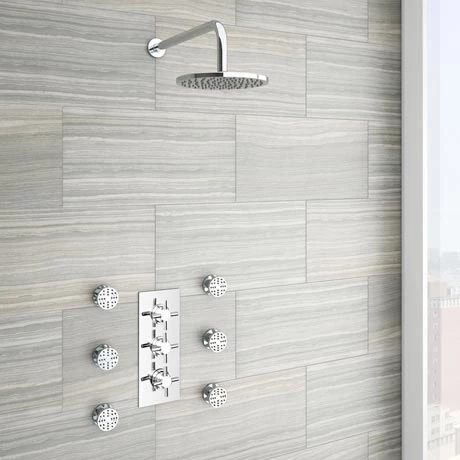

Pablo Concealed Thermostatic Valve with Fixed Shower Head & 6 Body Jets

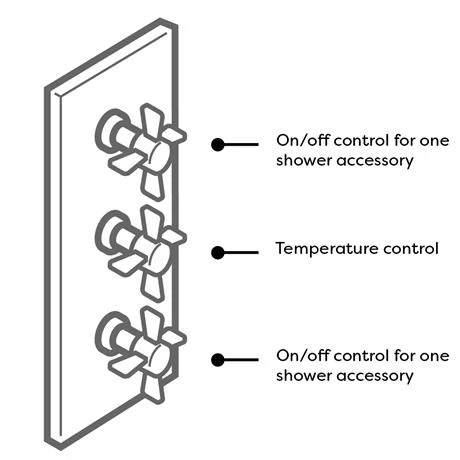

This Pablo concealed shower package, consists of a thermostatic valve with diverter, a wall mounted fixed shower head and 6 slim body jets (Perfect for creating a shower that massages you). Shower valve offers thermostatic showering via two easy-to-operate controls for temperature and flow. Diverts between two shower accessories: fixed head/body jets. Shower head and body jets features rub clean nozzles.

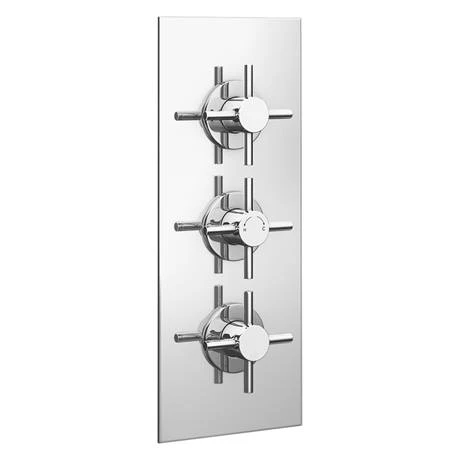

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome

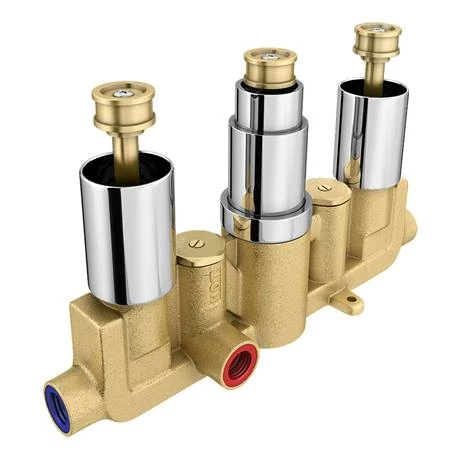

• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Cross Head
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

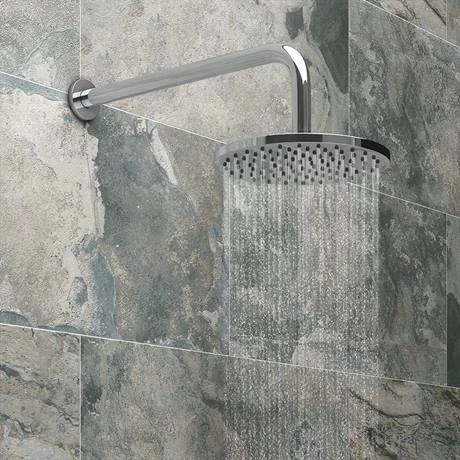

Shower Head & Arm Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

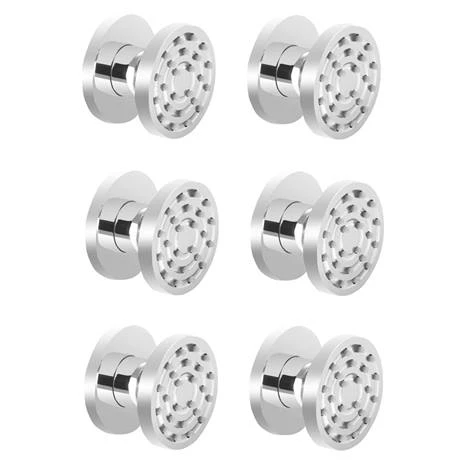

Body Jet Details

• Overall Size: D60 x W55 x H55mm (Approx.)
• Shroud ring: 55mm diameter
• Brass 1/2 inch BSP thread – 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Pablo Triple Crosshead Concealed Thermostatic Shower Valve – Chrome
(1) 200mm Round Head
(1) Round Shower Arm
(6) Cruze Body Jet – 6 x Slim Round Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
