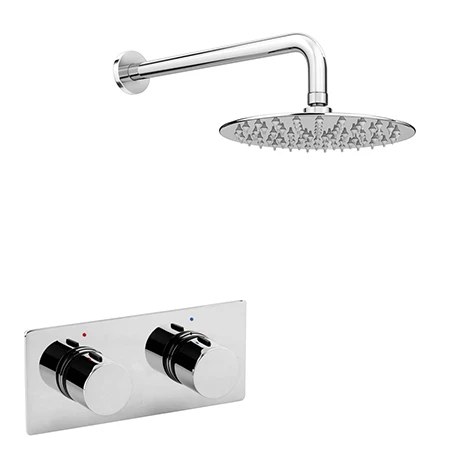

Venice Round Shower System with Concealed Valve + Wall Mounted Head

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Valve Handles: Round
• Type: Shower Mixer Valve
• Concealed
• Wall Mounted
• Rectangular Face Plate
• For use with 1 Outlet
• Pipe Size: 15 mm (1/2″ BSP)
• Water Pressure: 0.5 bar min to 5 bar max
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

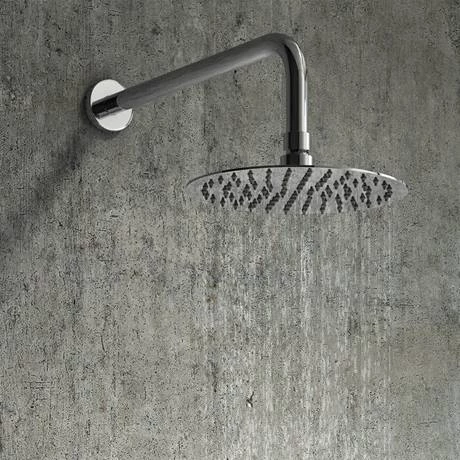

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Chrome
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Venice Modern 1 Outlet Twin Round Concealed Shower Mixer Valve – Chrome
(1) 200mm Chrome Ultra Thin Round Head
(1) Chrome Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
